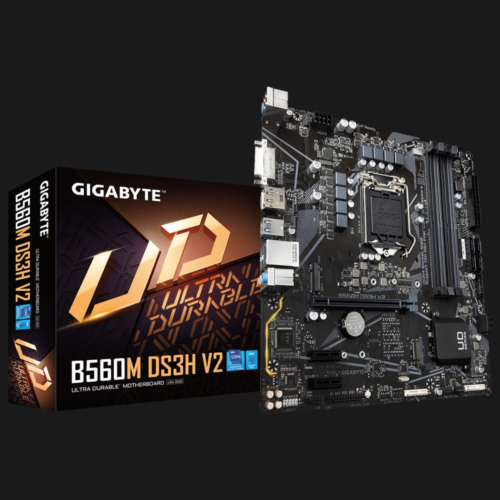

B560M DS3H V2 GIGABYTE

[vc_row][vc_column][vc_video link=”https://youtu.be/vLpdOVALpP8″ title=”YOU CAN WATCH THE UNBOXING AND REVIEW OF THIS PRODUCT HERE”][vc_column_text]B560M DS3H V2 GIGABYTEB560M DS3H V2 GIGABYTEYOU CAN BUY IT HEREOR OUR OTHER WEBSITE HERE  B560M DS3H V2 GIGABYTE COMES WITH FOLLOWING SPECS AND FEATURESIntel® B560 Ultra Durable Motherboard with Direct 6 2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C® , RGB FUSION 2.0, Q-Flash PlusB560M DS3H V2 GIGABYTESupports 11th and 10th Gen Intel®  Core™ Series ProcessorsDual Channel Non-ECC Unbuffered DDR4, 4 DIMMsDirect 6 2 Phases Digital VRM Solution with Low RDS(on) MOSFETsDual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth ManagementUSB 3.2 Gen1 Type-C® for Fast and Versatile ConnectionsHigh Quality Audio Capacitors and Audio Noise Guard with LED Trace Path LightingRGB FUSION 2.0 Supports Addressable LED & RGB LED StripsSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPQ-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics CardLGA1200 package:B560M DS3H V2 GIGABYTE11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.L3 cache varies with CPU(Please refer to “CPU Support List” for more information.)ChipsetIntel® B560 Express ChipsetB560M DS3H V2 GIGABYTEMemory11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.)Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.31 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)Support for up to 3 displays at the same timeAudioB560M DS3H V2 GIGABYTERealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.LANB560M DS3H V2 GIGABYTERealtek® GbE LAN chip (1 Gbps/100 Mbps)Expansion SlotsB560M DS3H V2 GIGABYTE1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)(Note) Supported by 11th Generation processors only.Storage InterfaceCPU:B560M DS3H V2 GIGABYTE1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)Chipset:B560M DS3H V2 GIGABYTE1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)6 x SATA 6Gb/s connectors * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.(Note) Supported by 11th Generation processors only.USBChipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)Chipset USB 2.0 Hub:2 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x parallel port header1 x Clear CMOS jumper1 x Q-Flash Plus button＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.Back Panel Connectors2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x DVI-D port1 x DisplayPort1 x HDMI port3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x RJ-45 port3 x audio jacksI/O ControlleriTE® I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionFan fail warningFan speed control  [/vc_column_text][/vc_column][/vc_row]
